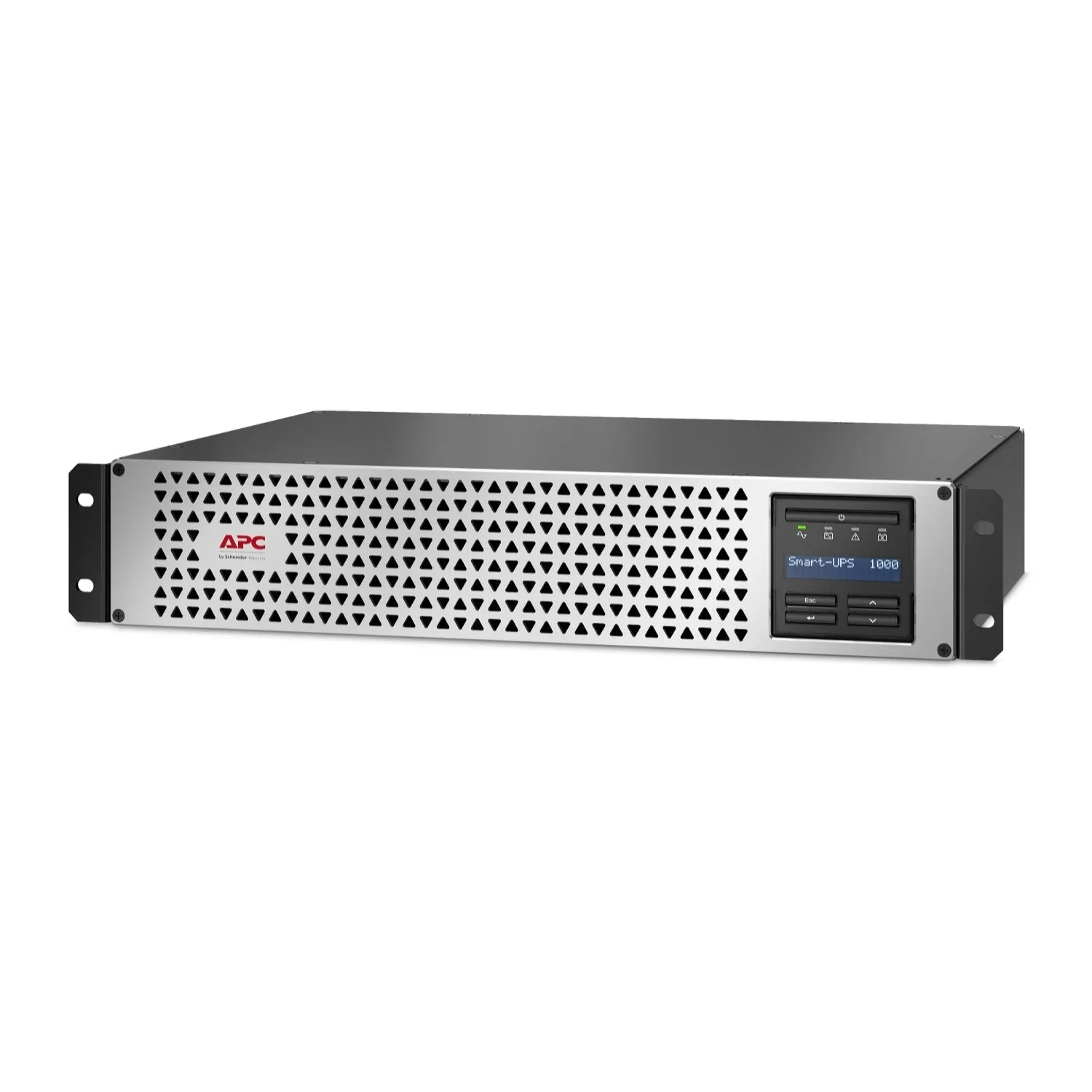

Name: APC Smart-UPS SMTL1000RMI2UC Lithium Ion, Short Depth 1000VA, 230V with SmartConnect
SKU: 767839

Product Details ＋

Specifications

Overview
Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time	Usually in Stock

Main
Run time for load W information_stroke Min-max: 80-800 W	7min 47s
Max. Capacity Used information_stroke	100 %
Main Input Voltage	230 V
Other Input Voltage	220 V 240 V
Main Output Voltage	230 V
Other Output Voltage	220 V 240 V
Rated power in W	800 W
Rated power in VA	1000 VA

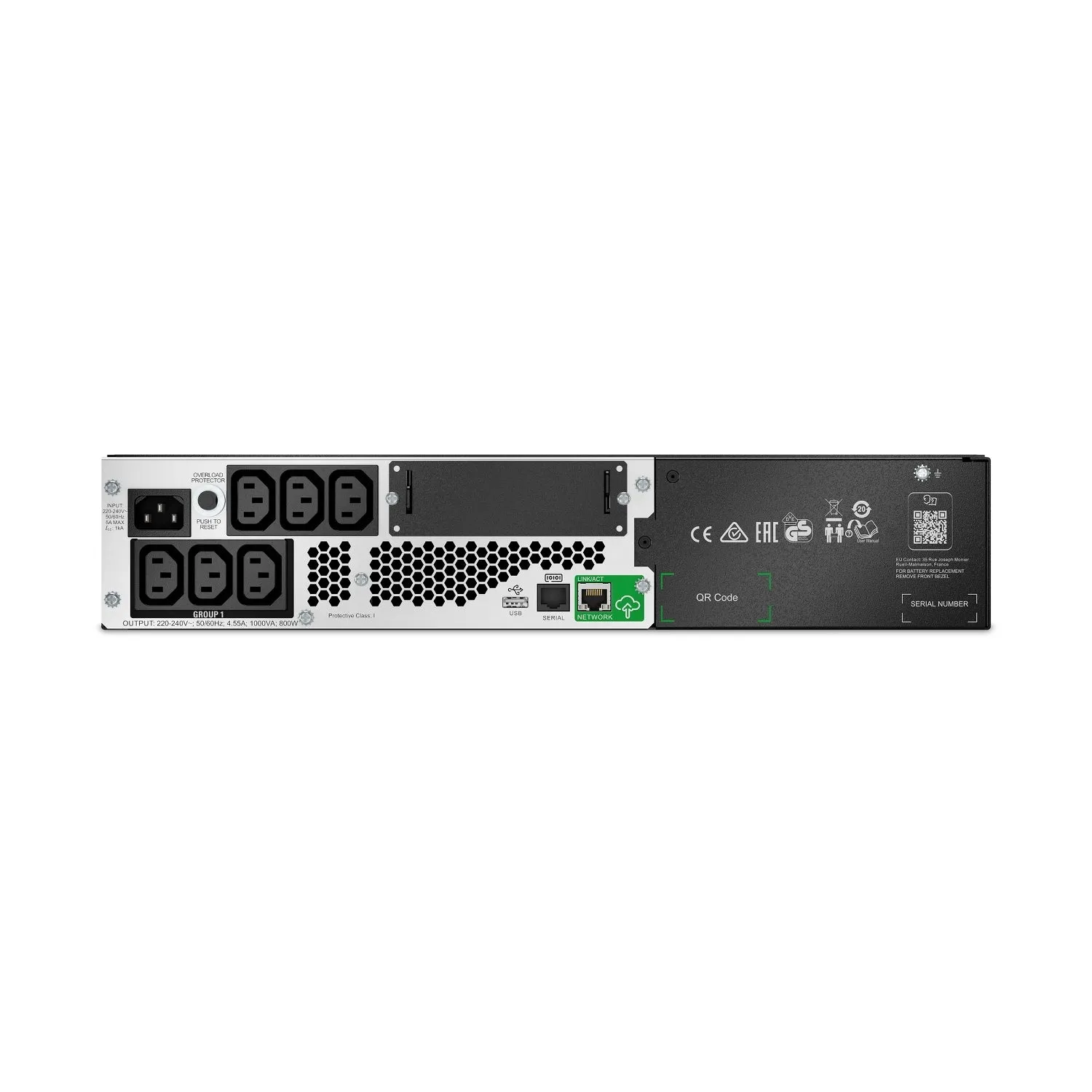

Input Connection Type	IEC 60320 C14
output connection type	6 IEC 60320 C13
Number of rack unit	2U
Battery type	Li-Ion (Lithium-Ion)
Provided equipment	Installation guide Rack mounting support rails USB cable

Complementary
Software package	SmartConnect software for remote power monitoring feature availability varies by terms of use

Batteries & Runtime
Run Time	action_new_window
Efficiency	action_new_window
Battery graph comments	This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime	0
Battery recharge time	3 h
Battery design life	8…10 year(s)
Battery charger power	79 W rated

General
product web sub-family	Cloud-enabled monitoring
Redundant	No

Physical
Colour	Black with silver front bezel
height	8.6 cm
Width	43.8 cm
Depth	31.8 cm
Net weight	16.3 kg
Mounting preference	Lower
Mounting mode	Rack-mounted
USB compatible	Yes

Output
Crest factor	3 : 1
Harmonic distortion	Less than 5 %
Maximum configurable power in VA	1000 VA
Maximum configurable power in W	800 W
Transfer time	6 ms typical : 10 ms maximum
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50/60 Hz /- 3 Hz sync to mains

Conformance
product certifications	C-Tick CE EAC RCM
Standards	EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Environmental
Acoustic level	41 dBA
heat dissipation	70 Btu/h
Operating altitude	0...10000 ft
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0.00…7620.00 m
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing

Communications & Management
alarm	Audible and visible alarms
control panel	Multifunction LCD status and control console
Free slots	1
Communication port support	SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm	Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering
Surge energy rate	680 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
