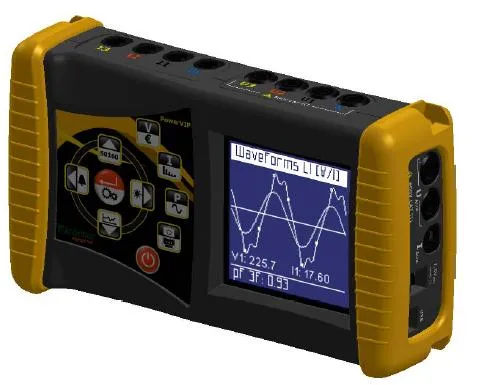

NanoVIP® CUBE™ is a modern, powerful, portable network analyzer developed for professional analysis of consumption and power quality of the most complex electrical networks. It can be used on single-phase networks, two-phase, threephase low and medium voltage. The advanced features of analysis software supplied makes it a suitable tool to the
most demanding professional needs.
- It can work on networks: single-phase, two-phase, three-phase balanced with or without neutral, three-phase unbalanced with or without neutral
- Full traditional energy analysis (V, I, P, Q, S, F, PF, THD%, instantaneous values / minimum / maximum / average, energy meters absorbed and generated both
three-phase for each phase) - Analysis of power quality parameters
- The current and voltage harmonics for each phase and for the neutral up to 50 °
- Imbalance of power phases
- Conformance testing to EN 50160
- Real measurement of the neutral current
- Display of the waveforms of currents and voltages
- 4 tariff bands setting with the related costs display
- Configuration and display of alarms on sizes 20 and settable
- Display of the time course of selectable parameters (trend)
- Automatic check of the correct connection of the implant tool
- Realization of long-term measurement campaigns (over 24 independently, unlimited if connected to the network)
- Multilanguage
- Customizable display, choosing which values display in rotation in the lower part and rotating it 90 ° in relation
to the comfort of reading
Order Information
Nanovip3 Kit 3 x 1000A CTs
Kit supplied with:
n. 1 NanoVIP CUBE handheld energy analyser
n. 1 battery pack
n. 4 voltage cables (yellow, black, red, blue) with
integrated alligator clips

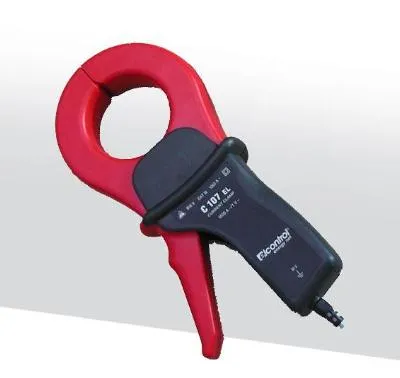

n. 3 1000A clamp-on CT
n. 1 USB-A/miniUSB-B connection cable
n. 1 memory card MicroSD 2GB
(containing the PC software NanoStudio and the user
manual)
n. 1 wall-plug power supply
n. 1 hard carrying case
