PRODUCT DESCRIPTION:
Garrett GEN2 GTX3071R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 650HP!

The Garrett GEN2 GTX3071R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.


PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84

COMPRESSOR HOUSING OPTIONS:

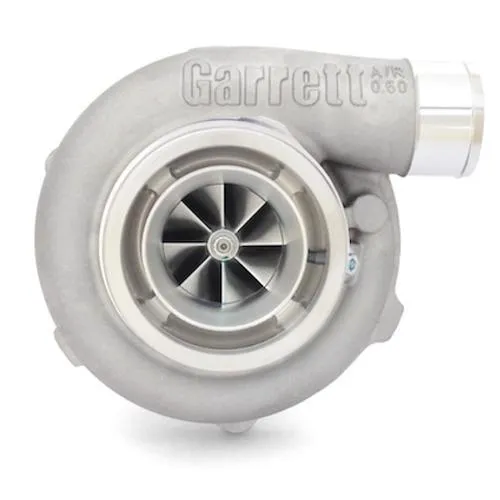

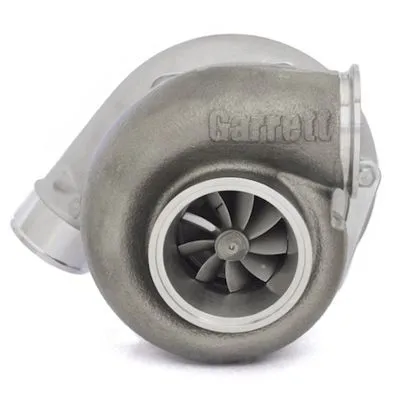

T04E Frame, 4 inch inlet, 2 inch outlet, and machined ported shroud (standard/default option)

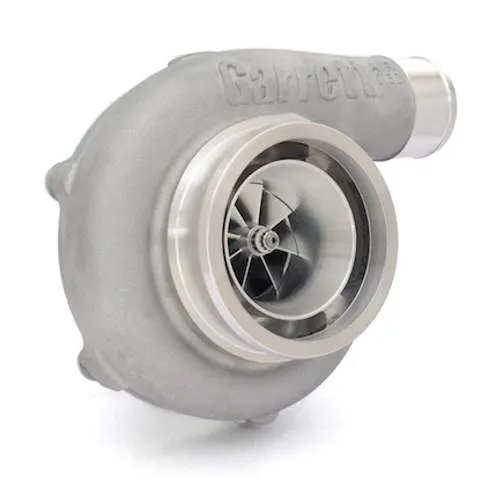

T04B Frame, 3 inch inlet and 2 inch outlet (Alternate compact option, same layout as GT2860RS/GT2871R)


TURBINE HOUSING OPTIONS:

Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R

ALTERNATIVE TURBINE HOUSING OPTIONS:

T25 Inlet, Stainless Steel, Internally Gated, and 5 Bolt GT28 Outlet. Available in and

T3 Inlet and 2.5" V-Band Outlet. Available in .63 or .82 A/R

T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R

T3 Divided Inlet and 3.0" V-Band Outlet. Available in ,

T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R

T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R

TiAL Stainless Steel V-Band Inlet & Outlet. Available in , ,



INSTALLATION HARDWARE:



Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor:

Oil drain flange:

Oil drain gasket:

8mm x 1.25 (thread pitch) Stud:

8mm x 1.25 (thread pitch) Locking Head Nut:

NOTE: Alternate coolant and oil fittings and flanges are available.



COMPRESSOR & TURBINE MAPS:
