PRODUCT DESCRIPTION:

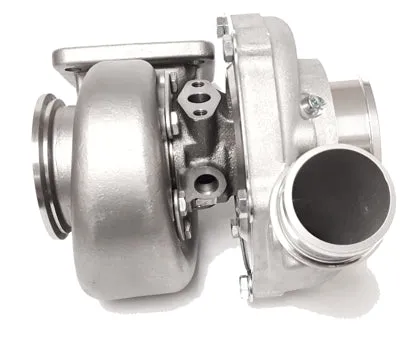

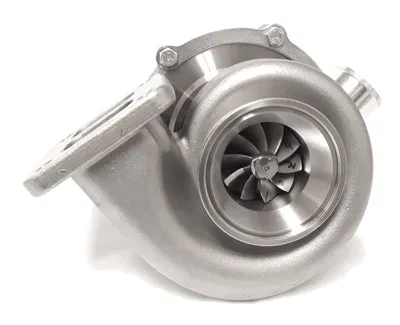

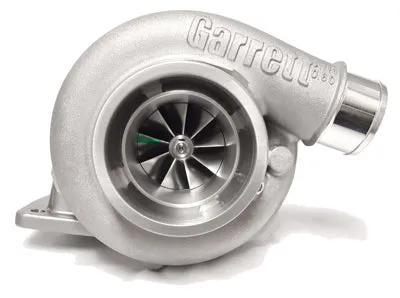

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T4 Divided Inlet and 3 Inch V-Band Outlet, 1.06 A/R Turbine Housing (ATP-HSG-063). Advanced GEN2 billet compressor wheel capable of 650HP!
PRODUCT FEATURES:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
INSTALLATION HARDWARE:
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting with .035" restrictor:
Oil drain flange:
Oil drain gasket:
8mm x 1.25 (thread pitch) Stud:
8mm x 1.25 (thread pitch) Locking Head Nut:

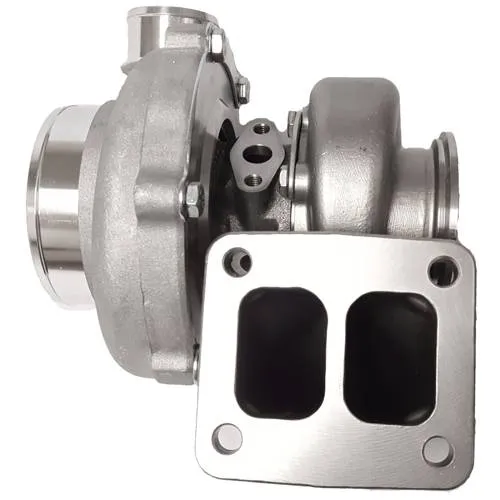

T4 Divided Inlet Flange (for Turbo Manifold):
T4 Divided Inlet Gasket:
3" GT V-Band Outlet Flange with 81mm centering groove (for Downpipe):
Matching Downpipe V-Band Outlet Clamp:
NOTE: Alternate coolant and oil fittings and flanges are available.COMPRESSOR & TURBINE MAPS:
