Name: GEN2 Garrett GTX3071R w/Compact Comp Hsg &Stainless .86 AR T25 IWG 5 Bolt Turbine Hsg 1 bar Actuator GRT-TBO-899
SKU: 1366718

Product Details ＋

PRODUCT DESCRIPTION:

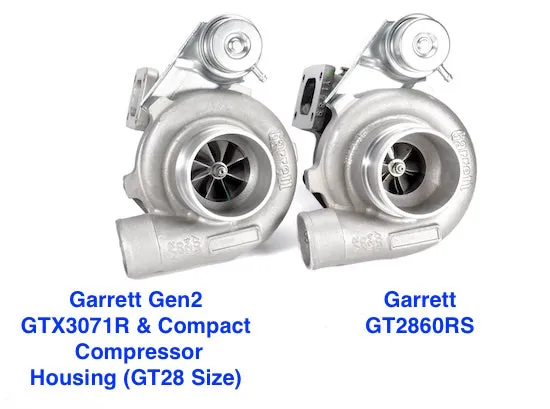

Garrett GEN2 GTX3071R dual ball bearing turbocharger configured as a direct drop-in upgrade for existing setups with a Garrett GT2860RS or GT2871R including T25 Inlet, internally gated, and 5 bolt outlet turbine housing! Advanced GEN2 billet compressor wheel capable of 650HP!

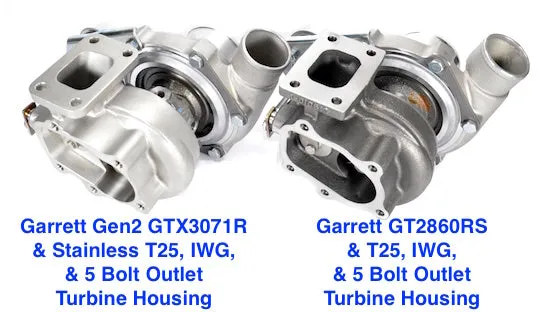

The direct "drop-in" Garrett GEN2 GTX3071R includes a compact GT28 size (T04B frame) compressor housing with a 3" inlet and 2" outlet; a stainless steel .86 A/R T25 Inlet, internally gated, & 5 bolt outlet turbine housing; and a 1 BAR (12-14PSI) wastegate actuator.

PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84

INSTALLATION HARDWARE:
